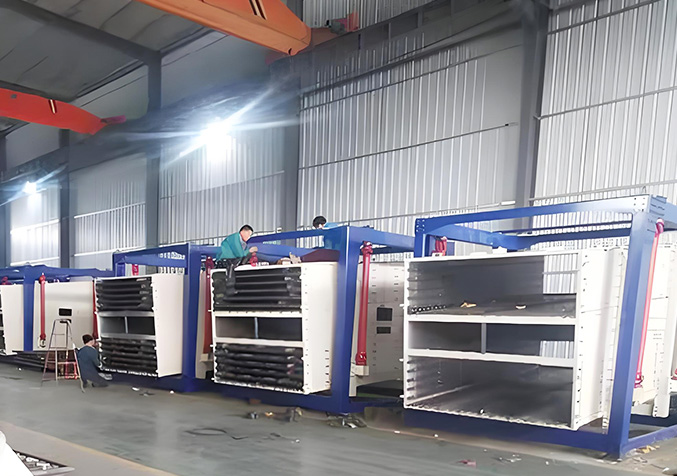

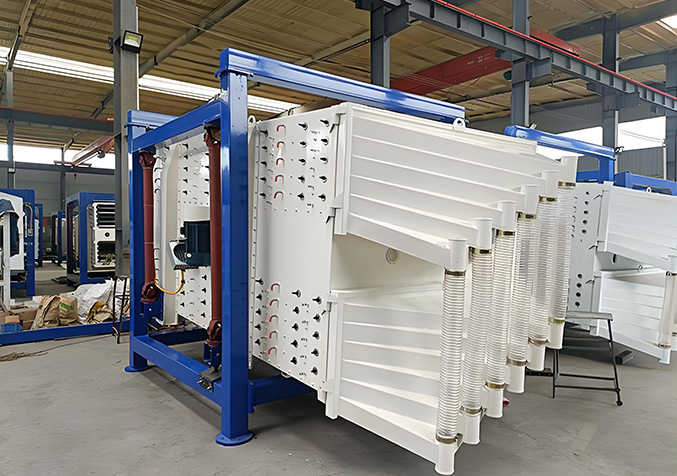

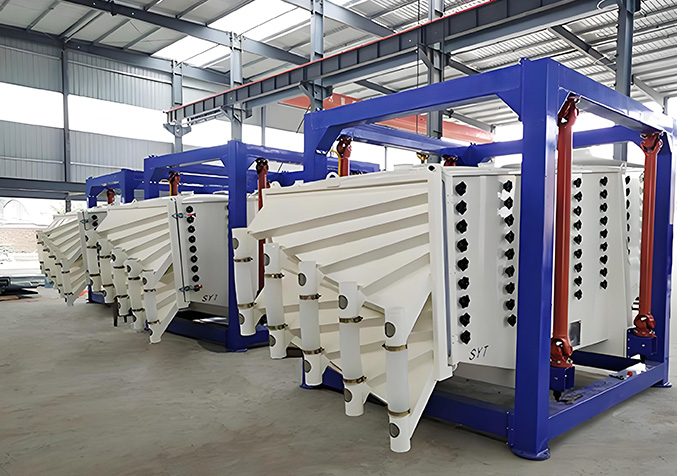

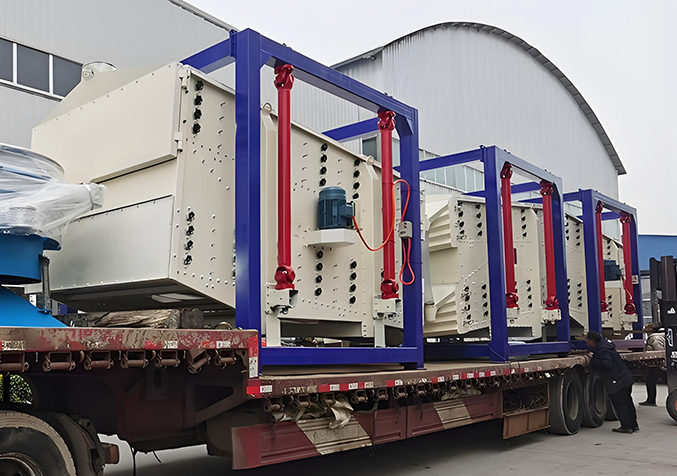

Square Swing Screen
The square swing screen series is a high-efficiency screening equipment developed and designed to meet the needs of users with large output and high precision.
Product Introduction
The square swing screen series is a high-efficiency screening equipment developed and designed to meet the needs of users with large output and high precision.
It is widely used in many industries such as chemical industry, metallurgy, mining, feed industry, food industry, etc. It is especially suitable for heavy alkali, salt, resin, compound fertilizer, large and small granular urea, feed, reduced iron powder, zirconium oxide, ceramsite, barite, etc.
Product Features
Fully enclosed structure, no dust flying, partial weight balance, small vibration and low noise of the screen. Meet environmental protection requirements.
Combined circular, elliptical and linear motion modes, good screening effect. Suitable for screening of various materials.
Equipped with automatic tensioning and automatic cleaning screen installation system, the screen utilization rate is high, the service life is long, and the screen replacement structure is simple and fast.
Reinforced machine base ensures more balanced operation of the equipment, and can also adopt a hanging structure according to the actual site conditions to meet the customer's transformation needs.
Improved wire rope hanging structure to avoid wire wear.
Product Parameters
|
Model |
AHYS-50 |
AHYS-800 |
AHYS-1000 |
AHYS-1300 |
AHYS-1500 |
AHYS-1600 |
|
Screen surface length × width（mm×mm） |
1200×500 |
1500×800 |
3000×1000 |
2500×1300 |
3000×1500 |
3200×1600 |
|
Number of screen layers (layers) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
Turn radius（mm） |
3 |
30 |
30 |
32 |
35 |
35 |
|
Power（KW） |
0.4 |
1.5 |
2.2 |
3 |
3 |
4 |
|
Output（tons） |
1-3 |
3-8 |
8-12 |
12-18 |
12-18 |
25-30 |
