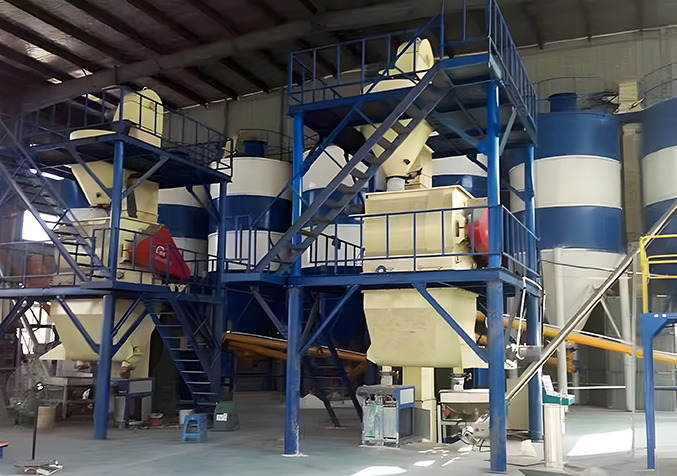

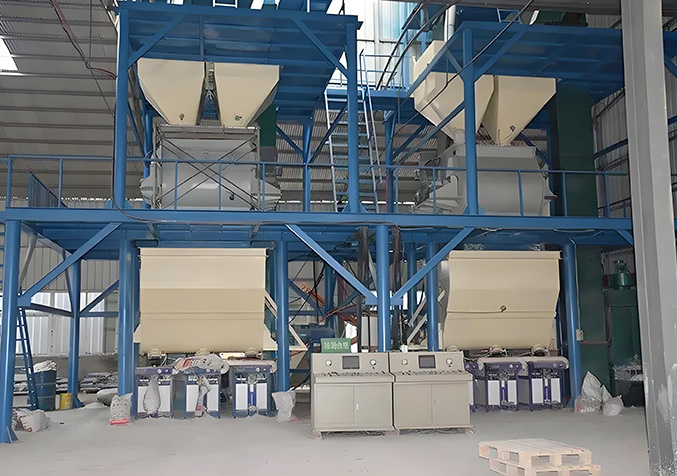

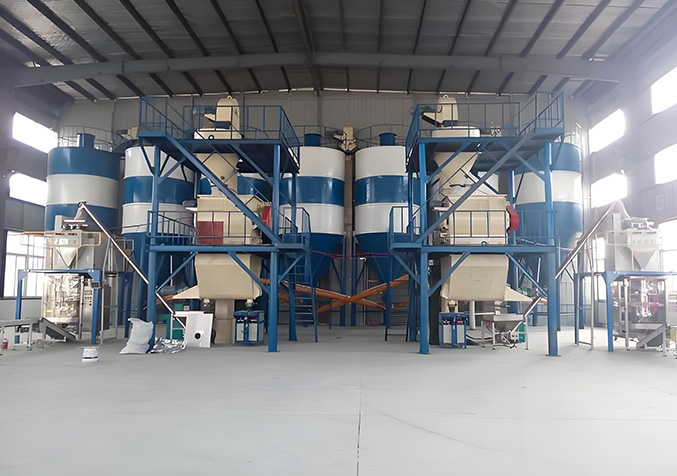

Self-leveling Mortar Plant
Capacity: 10-120 T/H
Aplication: Masonry mortar，Plastering mortar(bottom)，Floor mortar，Caulking agent mortar(black)，Seaming agent mortar，Caulking agent mortar(white)
Product Introduction
1. The main machine of the fully automatic dry powder mortar production line adopts a two-axis gravity-free mixer.
2. This machine is developed on the basis of integrating the technical essence of multiple generations of new models.
3. It has automatic feeding, pneumatic discharging, no accumulation of blocks on the barrel wall, and no dead ends Features.
4. All kinds of complete sets of dry powder mortar equipment produced by our company have the characteristics of small footprint, reasonable structure, simple operation, high production efficiency, no dust, reasonable power configuration, moderate investment, short construction period, and quick return on investment.
Advantages
1）Adopt new advanced reducer driving system instead of chain drive. save cost maintenance.
2）The paddle blades is removable type, convenient replacement of worn blades.
3）The blade is made of wear-resistant steel and is durable. Not ordinary steel plate cutting
Applicable Materials
Also used for Masonry mortar，Plastering mortar(bottom)，Floor mortar，Caulking agent mortar(black)，Seaming agent mortar，Caulking agent mortar(white)，Seaming agent mortar，Thermal mortar，Self-leveling mortar，Whitewashed plaster(bottom)，Cement plaster mortar，External putty powder，etc.
Product Parameters
| MODEL | TDSJ2 | TDSJ3 | TDSJ4 | TDSJ6 | TDSJ10 | Remark |
| CAPACITY(T/H) | 10-15 | 15-20 | 20-40 | 40-60 | 60-80 | customizable |
| HOST MOTOR(kw) | 18.5 | 22 | 22 | 45 | 55 | customizable |
| AGGREGATE SIZE(mm) | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | customizable |
| AGGREGATE SCALE(kg) | （200〜1000）±1％ | （200〜1500）±1％ | （200〜2000）±1％ | （400〜3000）±1％ | （400〜4000）±1％ | customizable |
| CEMENT SCALE(kg） | （100〜600）±1％ | （100〜700）±1％ | （100〜800）±1％ | （200〜1300）±1％ | （200〜1800）±1％ | customizable |
| ADDITIVE SCALE(kg) | （5〜30）±0.5％ | （10〜40）±1％ | （10〜50）±0.5％ | （10〜200）±0.5％ | （10〜200）±0.5％ | customizable |
