Fertilizer Rotary Dryer
The dryer is used to dry the moisture on the particles in the organic fertilizer production line, easy to store and transport.
Product Introduction

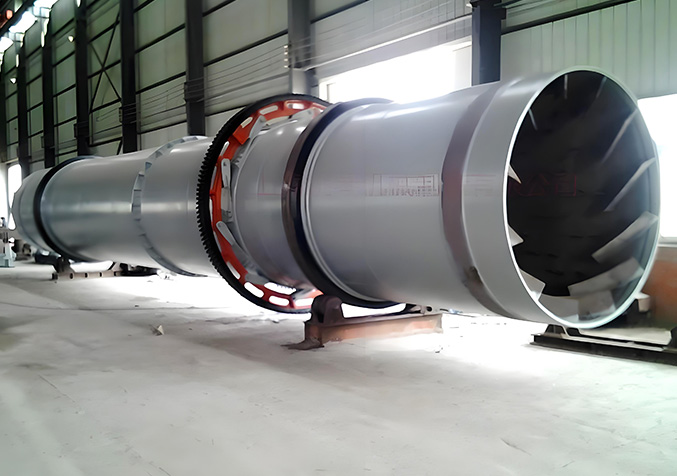

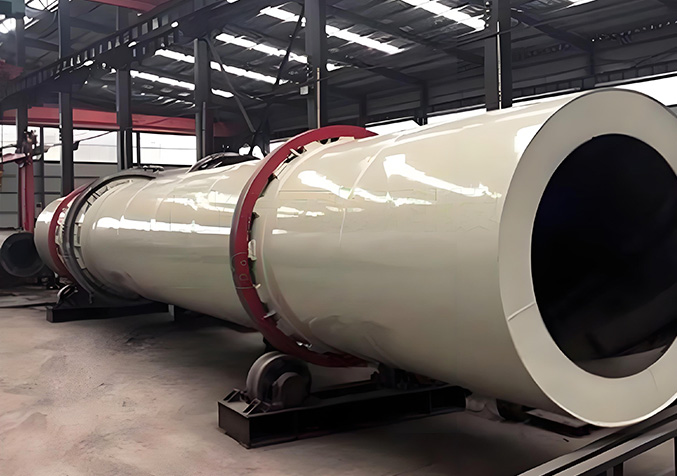

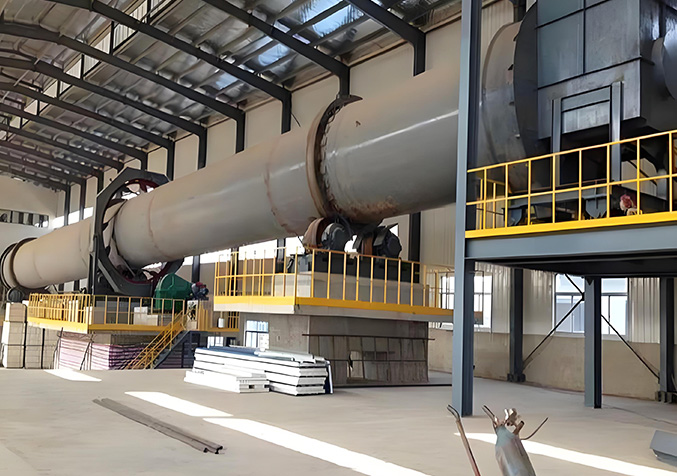

The cylinder of the drying machine is a rotating cylinder slightly inclined to the horizontal. The material in the cylinder is dried in the process of turning back and lifting the material by the spiral blade and the intermittent spiral lifting plate.
The material enters from the higher end, and the heat flows into the cylinder together with the material.As the cylinder rotates, the material moves to the lower end by gravity.
When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium to dry the material.
Product Features
1. One - time production and molding， strong and durable, strong corrosion resistance.
2. Diversified types of heat sources, designing more economical heating methods for customers.
3. There is a lifting board inside, which is evenly dried and has high efficiency.
4. Strong anti- overload ability， large processing capacity, low fuel consumption and low dry content.
Product Parameters
| Model | ZG0880 | ZG10100 | ZG12120 | ZG15150 | |
| cylinder | dip angle(°) | 2.5 | 2.5 | 2.5 | 2.5 |
| Speed(r/min) | 5.1 | 5 | 4.9 | 4.5 | |
| capacity | 1 | 1-2 | 2-2.5 | 5-7 | |
| (t/h) | |||||
| hot blast temp | 60-280 | 60-280 | 60-280 | 60-280 | |
| In inlet(°C) | |||||
| hot blast temp | 30-80 | 30-80 | 30-80 | 30-80 | |
| in outlet(°C) | |||||
| motor | Power(KW) | 4 | 5.5 | 5.5 | 11 |
| Speed(r/min) | 1440 | 1440 | 1440 | 1460 | |
| gear reducer model | ZQ250 | ZQ350 | ZQ350 | ZQ400 | |
| Model | ZG1880 | ZG20200 | ZG22220 | ZG24240 | |
| cylinder | dip angle(°) | 2.5 | 2.5 | 2.5 | 2.5 |
| Speed(r/min) | 4.3 | 4.1 | 3 | 2.9 | |
| capacity | 7-10 | 8-24 | 12-16 | 15-20 | |
| (t/h) | |||||
| hot blast temp | 60-280 | 60-280 | 60-280 | 60-280 | |
| In inlet(°C) | |||||
| hot blast temp | 30-80 | 30-80 | 30-80 | 30-80 | |
| in outlet(°C) | |||||
| motor | Power(KW) | 18.5 | 22 | 4×11 | 4×11 |
| Speed(r/min) | 970 | 970 | 980 | 980 | |
| gear reducer model | ZQ500 | ZQ500 | idler wheel drive | idler wheel drive | |
